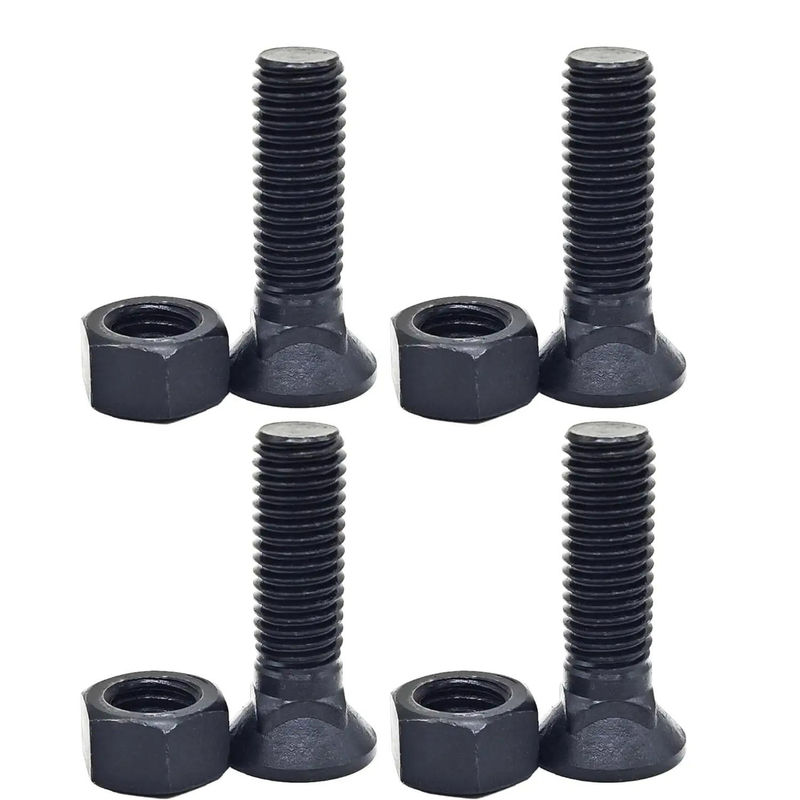

Name: M24 X 80mm Bolt Track Shoe Nuts Kit Grade 10.9 High Tensile Steel Corrosion Resistant Coating Crawler Tractor Undercarriage
Brand: Quanzhou Yangxin Machinery Co., Ltd.
SKU: pc-200
Price: 10.00 USD
Availability: InStock

Home > products > Plow Bolt >

M24 X 80mm Bolt Track Shoe Nuts Kit Grade 10.9 High Tensile Steel Corrosion Resistant Coating Crawler Tractor Undercarriage

Corrosion Resistant Bolt Track Shoe

High Tensile Steel Bolt Track Shoe

Crawler Tractor Undercarriage Bolt Track Shoe

Place of Origin:

china

Brand Name:

JBXF

Certification:

iso

Model Number:

pc-200

Request A Quote

M24 X 80mm Bolt Track Shoe Nuts Kit Grade 10.9 High Tensile Steel Corrosion Resistant Coating Crawler Tractor Undercarriage

Product Details

Hs Code:

84314999

Technique:

Forging & Casting

Model No:

Bolt And Nut

Thread Pitch:

Part Number:

6577954,9j2308,2070900097-LG952

Thread Length:

1-1/2

Suitable:

All Brand Excavator And Backhoe

Capacity:

0.1-8.7m3,1.05-1.6m3,1CBM

Finish:

Plain

Hardness:

HRC 22-32

Head Height:

1/2

Trademark:

JBXF

Thread Type:

UNC

Shipping:

By Sea, By Air, DHL, Other

Size:

1/2

Highlight:

Corrosion Resistant Bolt Track Shoe

High Tensile Steel Bolt Track Shoe

Crawler Tractor Undercarriage Bolt Track Shoe

Payment & Shipping Terms

Minimum Order Quantity

Price

10+10+10

Packaging Details

BOX

Delivery Time

Payment Terms

T/T

Supply Ability

Premium OEM Track Bolts And Nuts Dozer Crawler Loader Chains High Strength Shear Resistant ISO/DIN Standard Compliant

Get Best Price

M24 X 80mm Bolt Track Shoe Nuts Kit Grade 10.9 High Tensile Steel Corrosion Resistant Coating Crawler Tractor Undercarriage

Get Best Price

Industrial Strength Track Shoe Bolt Bulldozer Chains Heat Treated Durability Zinc Flake Coated Long Life Secures Track Pads Links

Get Best Price

Bulk Pack Track Chain Fasteners Excavator Bolt Nuts Crawler Dozer Track Optimal Torque Specs Wear Resistance

Get Best Price

Contact Now

Product Description

M24 X 80mm Bolt Track Shoe Nuts Kit - Grade 10.9 High Tensile Steel

Product Specifications

Attribute	Value
Hs Code	84314999
Technique	Forging & Casting
Model No	Bolt And Nut
Thread Pitch	13
Part Number	6577954,9j2308,2070900097-LG952
Thread Length	1-1/2
Suitable For	All brand excavator and backhoe
Finish	Plain
Hardness	HRC 22-32
Head Height	1/2
Trademark	JBXF
Thread Type	UNC
Shipping	By Sea, By Air, DHL, Other
Size	1/2

Product Description

M24 x 80mm Track Chain Assembly Bolts & Nuts Kit made from Grade 10.9 High Tensile Steel with corrosion resistant coating, compatible with common crawler tractor undercarriage systems.

Key Innovations

Locking Technology: Integral spiral locking threads (Deutschhold® patent)
Premium Material: Grade 12.9 super alloy (1,200 MPa yield)
Protective Finish: Phosphating + wax impregnation
Optimized Design: Reduced-shank diameter for enhanced elasticity

Performance Characteristics

Tested under SAE J2531 vibration profile (10-2,000Hz), these bolts maintain clamp load at >85% after 5M cycles. The spiral lock threads create radial interference, resisting loosening better than nylon inserts. Phosphated surface holds lubricant film, reducing fretting wear by 60%.

Compatibility

Mine sites with blast vibrations
Piling rigs/compactors
Rail-mounted excavators

Technical Specifications

Fatigue limit: 425 MPa (R = -1)
Operating temperature range: -50°C to +150°C
Magnetism: <1.05 permeability (non-interfering with sensors)

Maintenance Guidelines

Inspect every 500 service hours. Discard if thread damage exceeds 10% or corrosion penetrates >5µm.

Size Chart

Thread Size	Length (mm)	Thread Pitch (mm)	Head Type	Common Applications
M16	50	2	Hex	Small Dozers, Mini Excavators
M20	60	2.5	Hex	Mid-Size Excavators, Loaders
M22	70	2.5	Hex	Crawler Cranes, Heavy Loaders
M24	80	3	Hex	Bulldozers (D6-D7 Class)
M27	90	3	Hex	Large Bulldozers (D8-D9)
M30	100	3.5	Hex	Mining Dozers (D10+), Drills
M36	120	4	Hex	Ultra-Class Mining Equipment
